The heating unit is installed on the roof, inputting outdoor fresh air, which is solving the heating needs for high and large spacs (H:4-30m). Adopting direct combustion of gas in the gas coil to heat the air, with high heat exchange efficiency.
Easy installation, stepless regulation of heating volume, instant-on units, anti-freeze protection, sufficient burning, environmental emissions, multiple security protection, safe and reliable.
Model: AirTS-GT
Function: heating
Hot source or medium: natural gas
Control mode: wireless control, variable frequency, auto monitoring
Quality Assurance
Stable and Durable.
After-sales Service
24H Online.

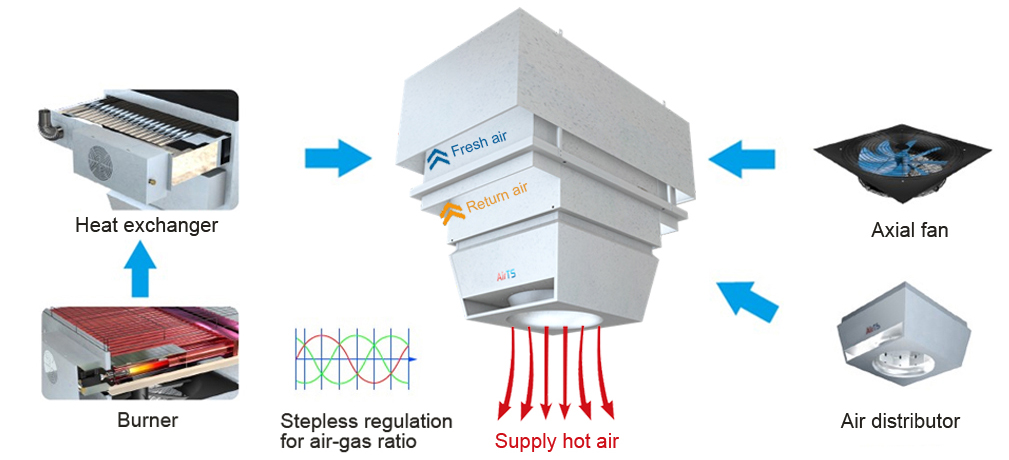

Working Principle
Natural gas mixed with air burned through burner, and the heat passes through heat exchanger.
The axial fan provides power to top side, make the return air take away the heat through heat exchager.
After two pressure boosts and silencers, hot air sent to the heating area in the floor.
Functions & Features
Real-time monitoring
Multiple guarantees, safe and reliable
Low investment, easy installation
Accurate energy saving
Fall prevention warning and monitoring
Gas consumption accurately proportioned to air volume
Stepless regulation of heating capacity
Support fresh air, exhaust air
Technical Comparison
System configuration of gas heating unit
1. Energy source: natural gas, electricity
2. Civil engineering requirements: none
3. Personnel requirements: unattended system
4. System configuration: gas heating unit
System configuration of traditional heating unit
1. Energy source: water, electricity, natural gas
2. Civil engineering requirements: boiler room or heat exchange station
3. Personnel requirements: furnace worker, maintenance worker
4. System configuration: gas boiler or thermal power plant, circulating water pump, primary and secondary circulating water network, heat exchanger, boiler room or heat exchange station, water tank, etc.
The gas heating system as follows
A. Low initial investment - 20% lower initial investment compared to traditional methods
B. Low running costs - direct heating, waterless system saves 40% of operating costs
C. Low maintenance costs - simple system and low failure rate
The water heating system as follows
A. High initial investment - complex system and many equipment
B. High running costs - 30~40% of non-heating ineffective losses
C. High maintenance costs - more equipment, more failure points, high failure rate
Advantage of Gas heating unit
1. Thermal conversion efficiency is above 96%.
2. Deliver heat directly and possess the capability to recover heat from the top of the space, thereby reducing temperature gradients in the space.
3. Stepless regulation of heating capacity (automatically adjust gas flow according to temperature requirement) and accurate temperature control.
4. To meet the heating requirements of the same project, the quantity of equipment is half compared with gas radiation unit.
5. The air volume is accurately proportioned according to the gas flow (one-thousandth fine adjustment) to ensure full combustion and environmentally friendly emissions.
Specification
| Roof Heat Recovery Gas Heating Unit | ||
| Model | AirTS-GT | |
| Rotating speed of fan | r/min | 0~860 |
| Standard circulating air volume | m³/h | 0~10200 |
| Voltage | V | 380±5% |
| Electric power | kW | 0~1.87 |
| Current | A | 0~4.0 |
| Suitable installation height | m | 4~17 |
| Heating capacity | kW | 0~56.18 |
| Air consumption | m³/h | 5.21 (Working condition)/ 5.64 (Standard condition) |
| Supply gas pressure | Kpa | 5~10 |
| Working pressure | Kpa | 2 |
| Thermal efficiency | η | 99.90% |
| Control mode | Stepless regulation of variable gas volume and wind speed | |
| Noise | dB | <60 |
| Dimension | ||
| Model | AirTS-GT | |
| A | mm | 1600 |
| B | mm | 1760 |
| C | mm | 1250 |
| D | mm | 1720 |
| E | mm | 905 |
| G | mm | 855 |
| H | mm | 1230 |
| J | mm | 220 |
| Inlet air pipe | mm | DN20 (external thread) |
| Exhaust air pipe | mm | DN80 |
| Weight | kg | 320 |
