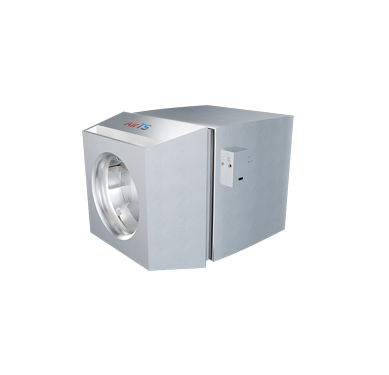

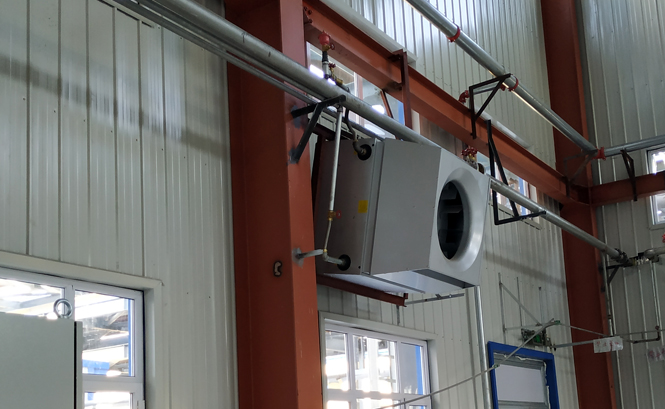

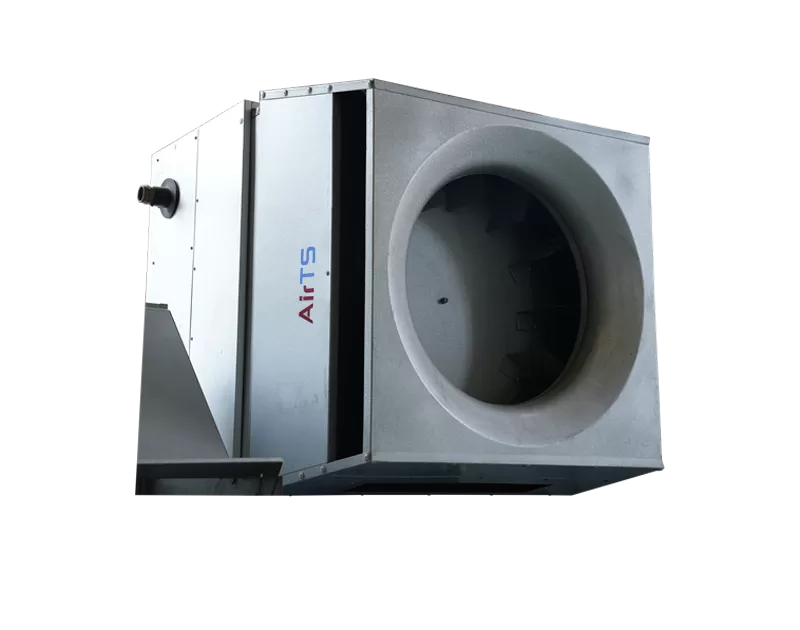

Side-mounted Heating and Cooling Unit

Applications: ideal for high and large space (H: 4-30m) that needs cooling and heating with horizontal supply air distance ≥26m, lower energy consumption and better effect especially under cooling conditions.

Model: AirTS-SK-I, AirTS-SK-II

Function: cooling, heating

Cold and hot source: cold water (7-12℃)/hot water (40-90℃)

Control mode: wireless control, variable frequency, auto monitoring

Quality Assurance

Stable and Durable.

After-sales Service

24H Online.

Inquire Now Next Product

Working Principle Specification Application Download Inquire Now

Working Principle

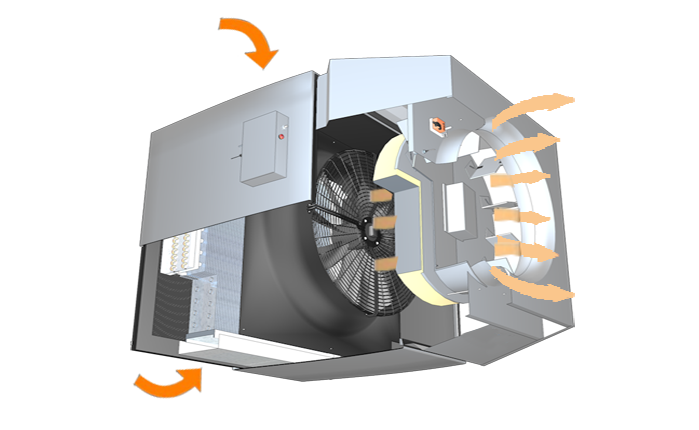

When hot/cold water or steam passes the equipment, the efficient air exchanger in the equipment is used to achieve rapid heating/cooling of the air.

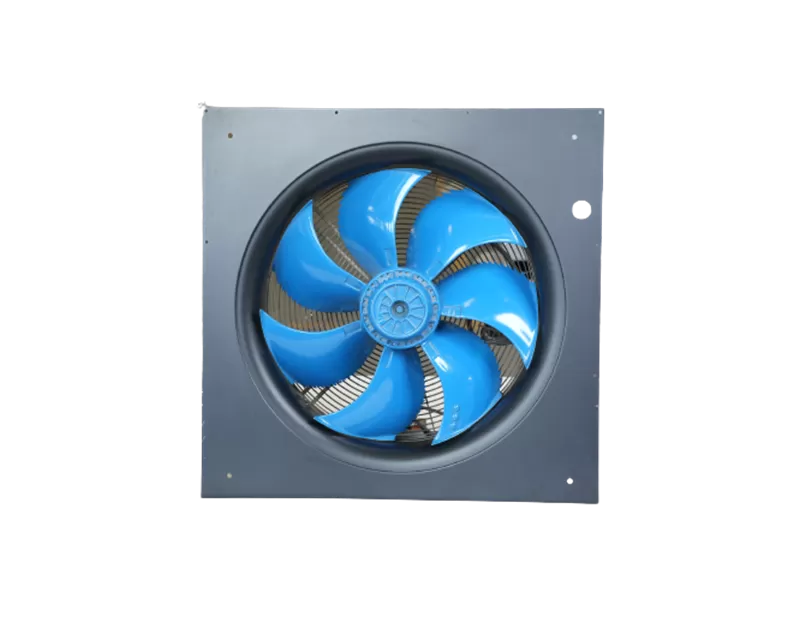

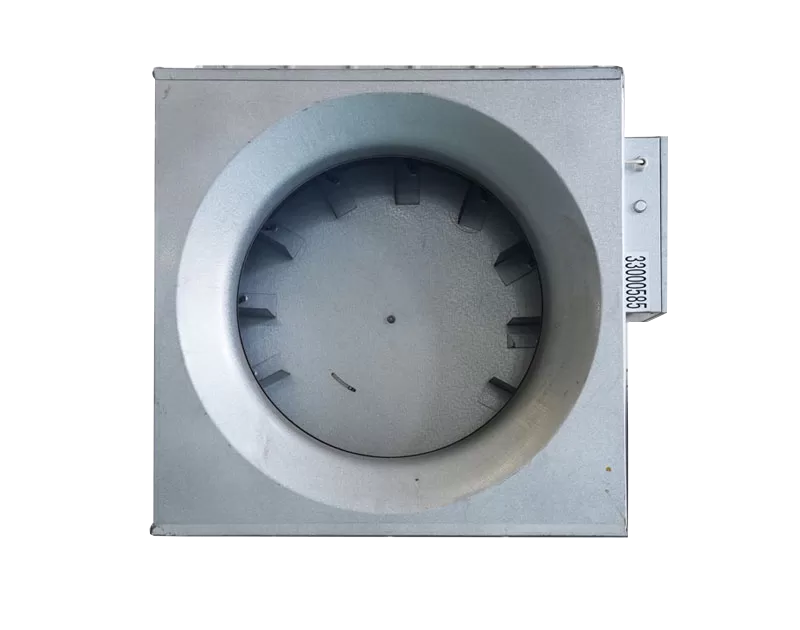

The large wind pressure axial flow fan installed on the top is used to forcedly press the hot air down. Then the air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.

Features

By adjusting wind speed and air outlet angle, it achieves comfortable cooling or heating environment

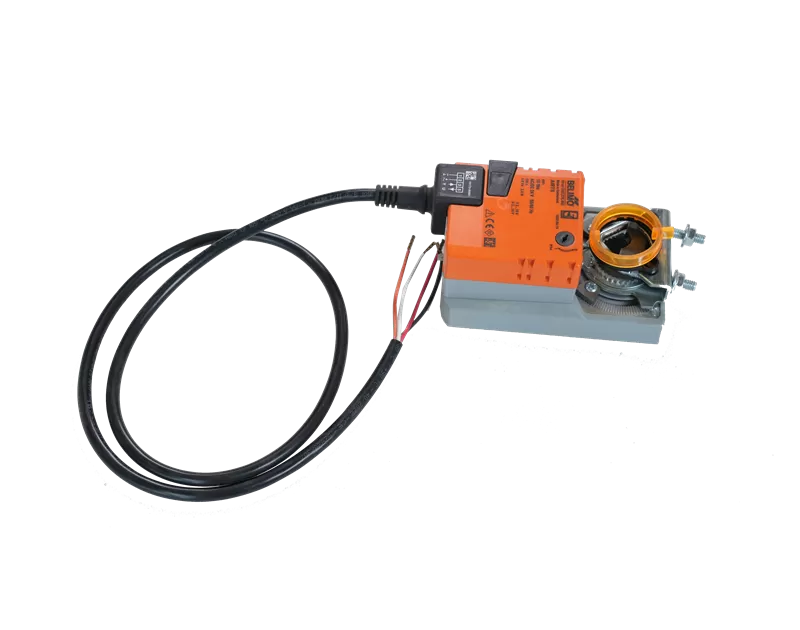

Supply air angle stepless regulation

Utilize axial fan to efficiently recover heat from the top space, reducing heat loss from the roof, achieving energy-saving effects

The fan is installed below the air exchanger to control noise level (<60 dB)

The special designed square-shaped type air exchanger prevent the leakage of condensate water

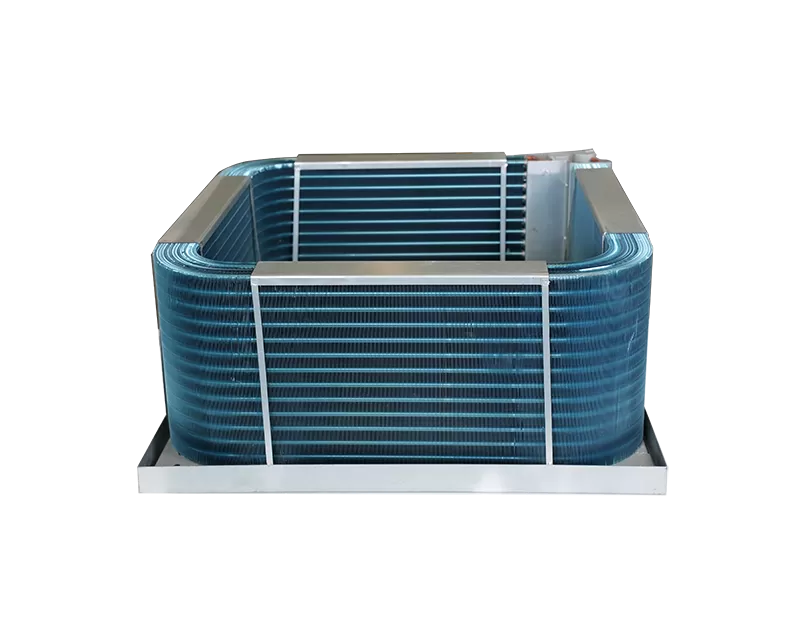

The complex designed air exchanger, 1.5 times exchange area than others, takes significant heating/cooling efficiency

Long air supply distance, high hot/cold air volume

Function: cooling, heating

Functions

Fall prevention warning monitoring

Working data collection and analysis

Variable air volume and water volume

Wireless intelligent control

Side supply air

Frost protection

Support full linkage control

Heating and cooling

Specification

Side-mounted Heating and Cooling Unit

Side-mounted Heating and Cooling Unit
Model		AirTS-SK-I	AirTS-SK-II
Rotating speed of fan	r/min	0～900	0～860
Standard circulating air volume	m³/h	0～6700	0～9900
Voltage	V	380±5%	380±5%
Electric power	kW	0～0.85	0～1.80
Current	A	0～1.65	0~3.60
Horizontal supply air distance in cooling mode	m	＜19	＜28
Horizontal supply air distance in heating mode	m	＜17	＜26
Control mode		VAV stepless regulation	VAV stepless regulation
Noise	dB	<60	<60

Side-mounted Heating and Cooling Unit

Dimension
Model		AirTS-SK-I	AirTS-SK-II
A	mm	900	1100
B	mm	1220	1300
C	mm	500	700
E	mm	570	570
F	mm	100	92
J	mm	117	204
L	mm	167	268
M (internal thread)	mm	DN40	DN50
N (external thread)	mm	DN25	DN32
P	mm	647	695
Q	mm	765	935
Weight	kg	191	250
Water volume	L	5.8	9.8

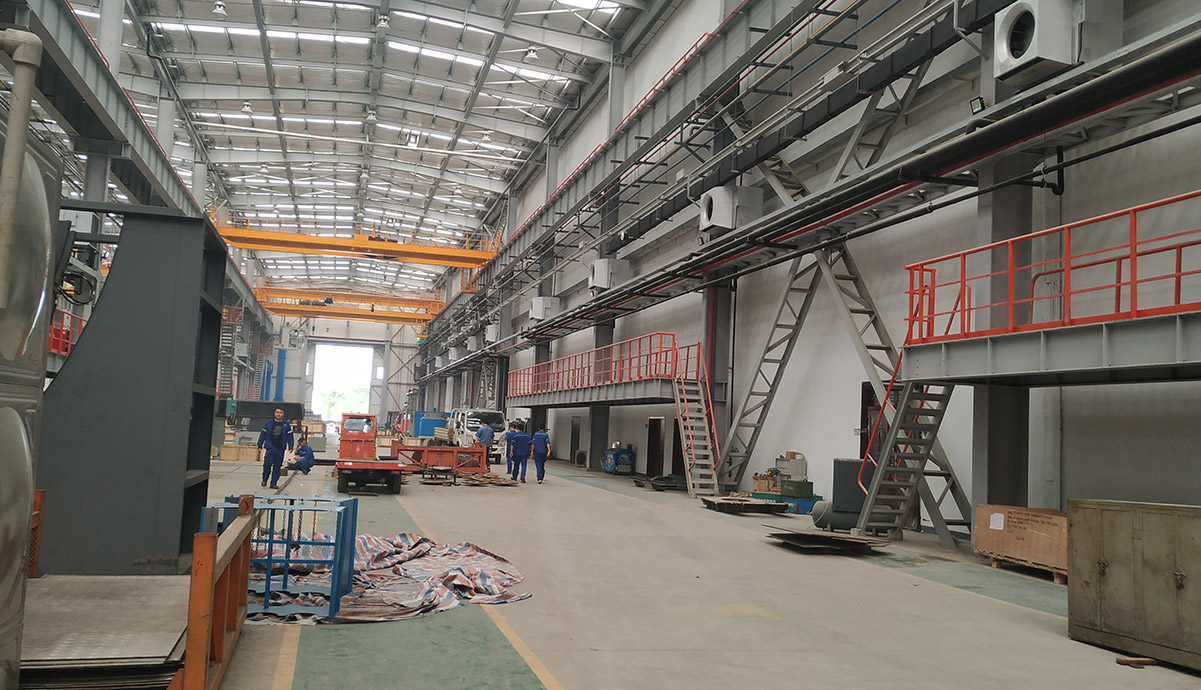

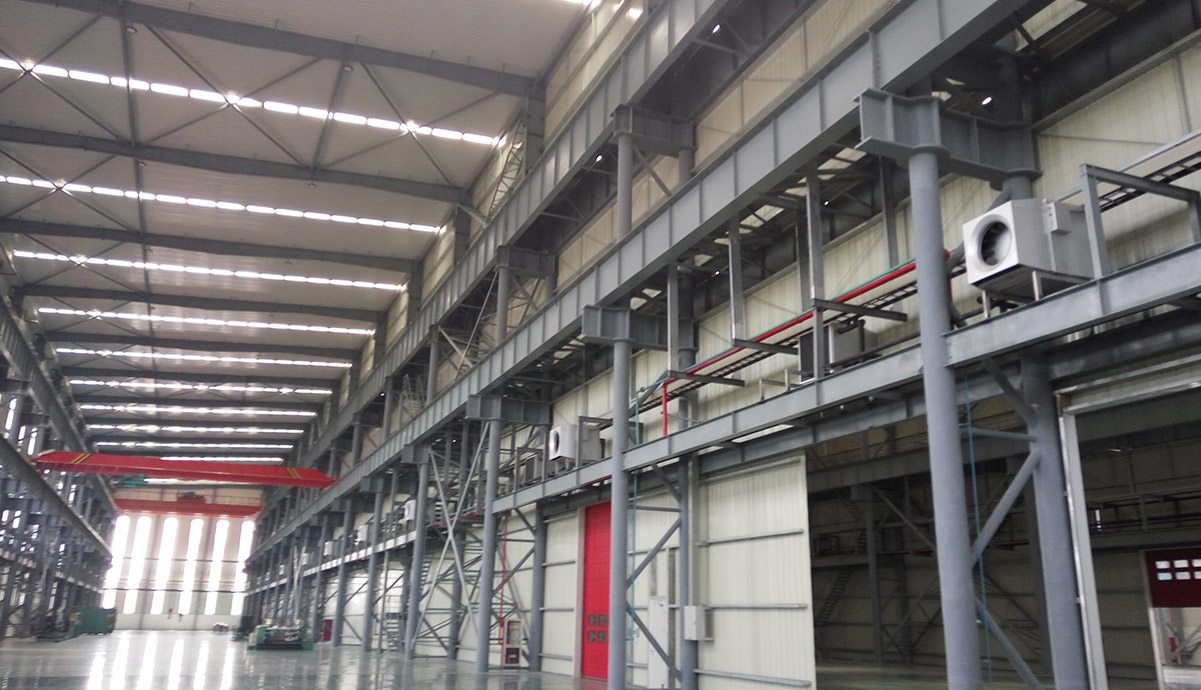

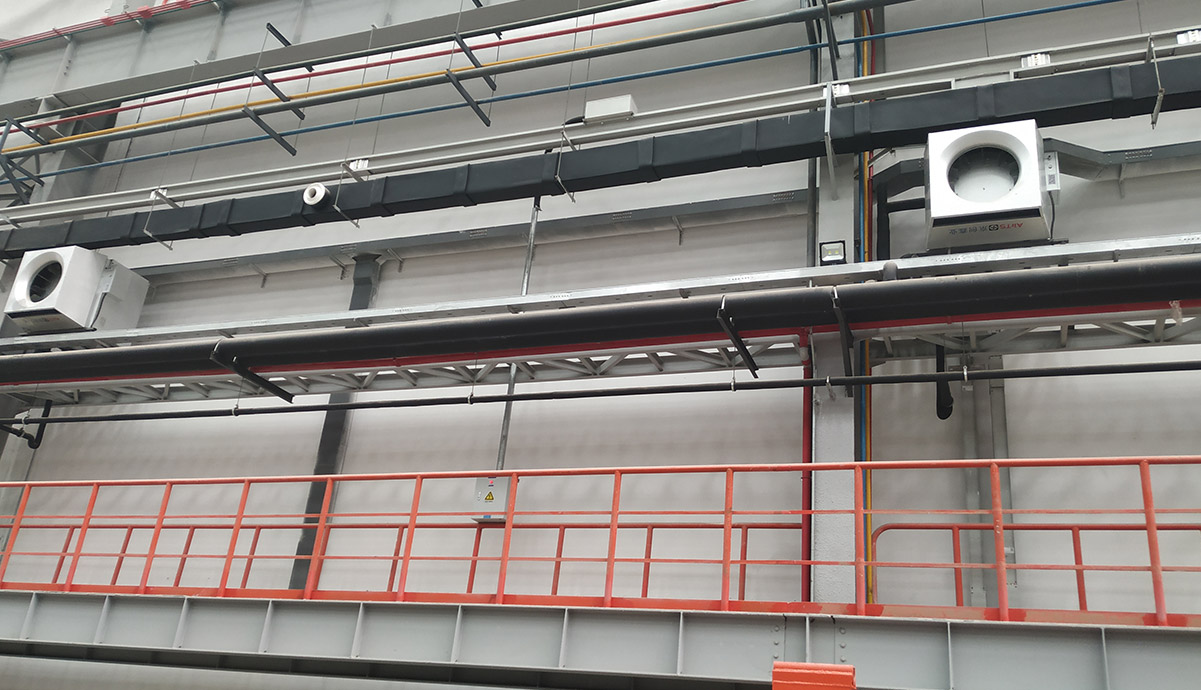

Application
