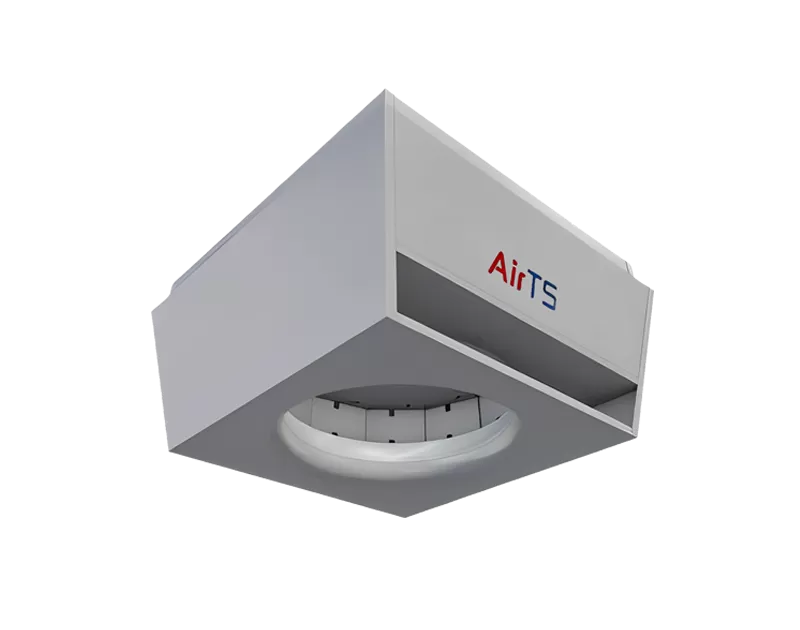

Applications: ideal for high and large space (H: 4-30m) that needs heating.
Model: AirTS-D-I/AirTS-D-II
Function: heating
Hot source: hot water (40-90℃) /steam (<120℃)
Control mode: wireless control, variable frequency, auto monitoring
Quality Assurance
Stable and Durable.
After-sales Service
24H Online.
Working Principle
When hot water or steam passes the equipment, the efficient heat exchanger in the equipment is used to achieve rapid heating of the air.
The air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.
Features
By adjusting wind speed and air outlet angle, it achieves comfortable heating environment
Supply air angle stepless regulation

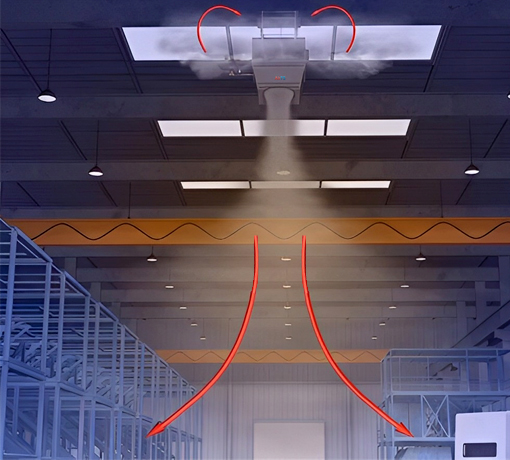

Utilize axial fan to efficiently recover heat from the top, reducing heat loss from the roof, achieving energy-saving effects
High: continuously recover heat from the top space to send the heat to the working area at the bottom
Large: the devices in the space are arranged uniformly, and heat is distributed evenly
Space: decrease the temp of roof and surrounding walls, decrease the temp difference with the outside, and reduce heat loss
Long air supply distance, high hot air volume
Function: heating
Functions
Fall prevention warning monitoring
Variable air volume and water volume
Working data collection and analysis
Filter net self-cleaning
Wireless control
Frost protection
Light breeze air supply
Support full linkage control
Technical Comparison
AirTS top heating unit
High and large space air conditioner lifted on the roof
It achieves heating air from the air exchanger in the equipment
It distributes the hot air by means of efficient air distributor, which eliminates the undesirable indoor temp layers
Comfortable heating environment without wind feeling sense
Bottom heating unit
In high large space with great depth, using radiator can allow natural air convection as hot air rises
It can only radiate into small area with the range less than 5m. The heat rising to the roof will be dissipated and the temp cannot be achieved effectively in the middle area.
Radiator heating requires high requirements for supply water temp.
AirTS units temp field
Our heating units forcedly and quickly send the hot air down, make the temp in the working area rise rapidly.

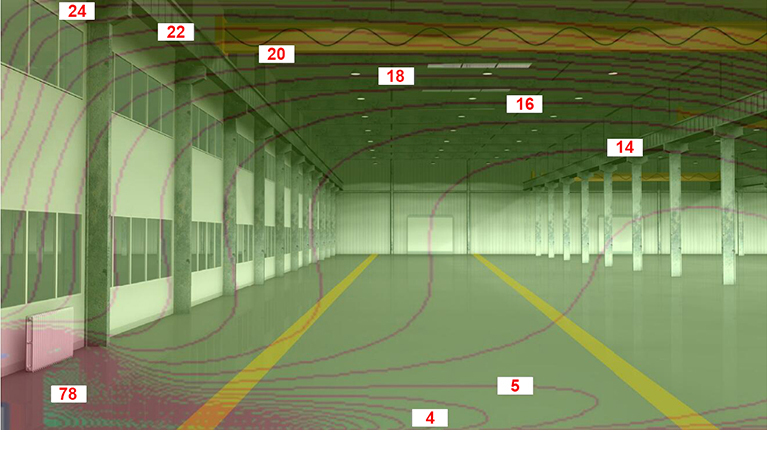

Radiator heating temp field
It can be seen from the radiator heating temp field image that the heat is mainly gathered on the roof and the temperature is low in the lower working area.
Specification
| Recirculated Air Heating Unit | |||
| Model | AirTS-D-I | AirTS-D-II | |
| Rotating speed of fan | r/min | 0～900 | 0～860 |
| Standard circulating air volume | m³/h | 0～6700 | 0～9700 |
| Voltage | V | 380±5% | 380±5% |
| Electric power | kW | 0～0.85 | 0～1.80 |
| Current | A | 0～1.65 | 0~3.60 |
| Suitable installation height | m | 4~10 | 4~17 |
| Control mode | VAV stepless regulation | VAV stepless regulation | |
| Noise | dB | <60 | <60 |
| Dimension | |||
| Model | AirTS-D-I | AirTS-D-II | |
| A | mm | 900 | 1100 |
| B | mm | 990 | 1165 |
| C | mm | 735 | 850 |
| E | mm | 100 | 100 |
| F | mm | 150 | 150 |
| G | mm | 480 | 568 |
| H | mm | 765 | 935 |
| J | mm | 601 | 724 |
| K | mm | 521 | 644 |
| N (internal thread) | mm | DN32 | DN40 |
| Weight | kg | 130 | 176 |
| Water volume | L | 5.8 | 9.8 |
