Through strong air agitation to form a circulating airflow field, then generate a large simulated natural wind system, which accelerating air circulation in large spaces and greatly improving environmental comfort.

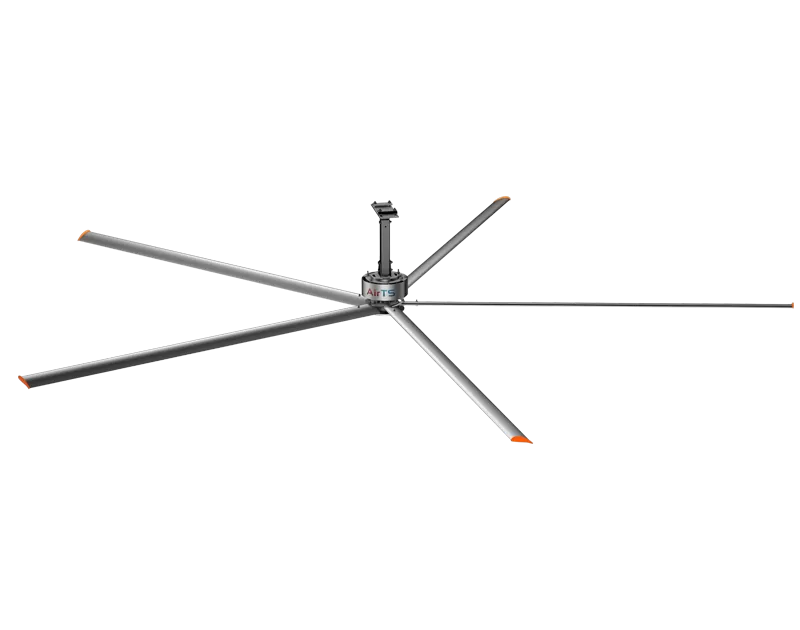

Model: AirTS-F55
Function: Ventilation
Features: Low noise, energy-saving, good heat dissipation, large air volume
Control mode: Intelligent frequency conversion, wireless control
Quality Assurance
Stable and Durable.
After-sales Service
24H Online.
HVLS Fan Woking Principle
The electric motor drives the blades into rotation, resulting in a powerful airflow.
Its operational principle is based on the principles of centrifugal force and gas dynamics. Enclosed within the fan is an electric motor that transmits power to the blades through a transmission mechanism.
As the motor initiates operation, it sets the blades in motion,causing changes in the surrounding air and thus generating wind.
The AirTS-F series large energy-saving fans adopt wing shaped blades, which can minimize air resistance and efficiently convert electrical energy into kinetic energy of the air.
The airflow covers a range beyond the diameter of fan, pushing the airflow vertically towards the ground, forming a 1-3 meter high airflow layer on the ground, thus forming a super large coverage area not only limited to fan size.
The large size and slow speed of HVLS fans also affect airflow in a room. Instead of a concentrated column of air produced by conventional fans, HVLS fans produce a large, slow-moving column of air that extends to the floor. This column of air then spreads out horizontally, creating a gentle, undisturbed breeze that can be felt throughout the room. The horizontal airflow produced by HVLS fans also helps to make the temperature more even throughout the room. This is because the gentle breeze produced by the fans helps to circulate the air in the room, eliminating hot and cold spots.
Cooling in summer.
On hot summer days, our HVLS fans provide a cool breeze by moving large volumes of air at low speeds. When the breeze passes over your skin, it feels 5ºC (10°F) cooler. As a result, HVLS fans provide greater comfort at a very low operating cost.
Savings in winter.
When large buildings are heated in winter, heat naturally rises to the ceiling and is of no use to those downstairs. In this case, the heat is wasted. With our HVLS fans, you can transport unused heat downstairs (eliminating stratification) and distribute it evenly throughout the building. This can result in significant savings on running costs for heating systems.
Features
Lifetime increased more than 20%
Protection grade IP65
180°C temperature resistant permanent magnet
Primary energy efficiency
Weight reduced 20%
High quality imported brand bearing
Functions
Stereoscopic natural Wind
PMSM motor with Inner rotor
Knob controller, digital display
Optional mobile APP remote control
Optional wireless control system
Support full AirTS products linkage control
Large converage area
Save more than 30% energy,worked with AirTS air conditioner
Technical Comparison
PMSM VS Gear Shifting Motor
PMSM Motor Advantages:
A. More energy saving
B. Simple structure
C. Smaller size and lighter weight
D. Low noise
E. Frequency range: 0-50Hz
F. Direct drive motor without maintance
Gear Shifting Motor Weakness:
A. More power consumption
B. Complex structure
C. Bigger size and heavier weight, loud noise
D. Frequency range: 25-50Hz
E. Gear shifting motor, the gear should be replaced

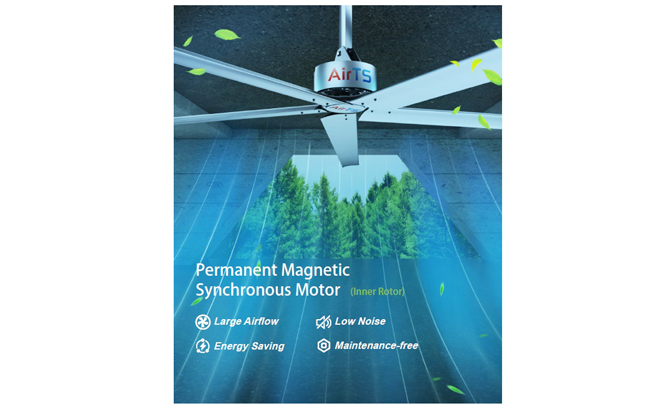

AirTS-F Inner VS Outer Rotor
Inner rotor structure advantages:
A. Better heat dissipation : Stator is outside (heat source).
B. More safety: the rotating parts are only the motor shaft and fan blades.
C. Longer lifetime: the hanger rod and motor can be integrated as a whole, and the rotating bearings only need to bear the weight of the wind blades, slightly wear.
D. Stable operation: the motor body and fixed steel wire rope are fixed on the motor mounting plate, and the motor does not rotate.
Outer rotor structure weakness:
A. No better heat dissipation: stator is inside (heat source).
B. Less safety: the rotating parts include the motor body and fan blades.
C. Shorter lifetime: single hanger rod, small stress area, and heavy bearing capacity.
D. Easy to shake: the hanger rod bears all the weight of the fan and the torque generated during operation
Standard Control
More Safety and Reliable
Electrical protection:
lt has protection functions, such as overvoltage, under voltage, loss of voltage regulation, overload, collision, overheating, lightning strike, abnormality, and alarm linkage and so on.
Running indicator light (RUN):
When the light is off, the inverter is in shutdown state; when the light is on, the inverter is in running state.
Keyboard operation, terminal operation and remote operation
(communication control) indicator light (LOC):
.LOC light off: Panel start, stop control.
.LOC light on: Terminal start, stop control.
.LOC light blink: Communication start, stop control.
Tuning, Torque Control, Fault Indicator Light (TUNE):
When the light is on, it means it is in torque control mode. If it flashes slowly, it is in tuning state. If it flashes quickly, it is in fault state.

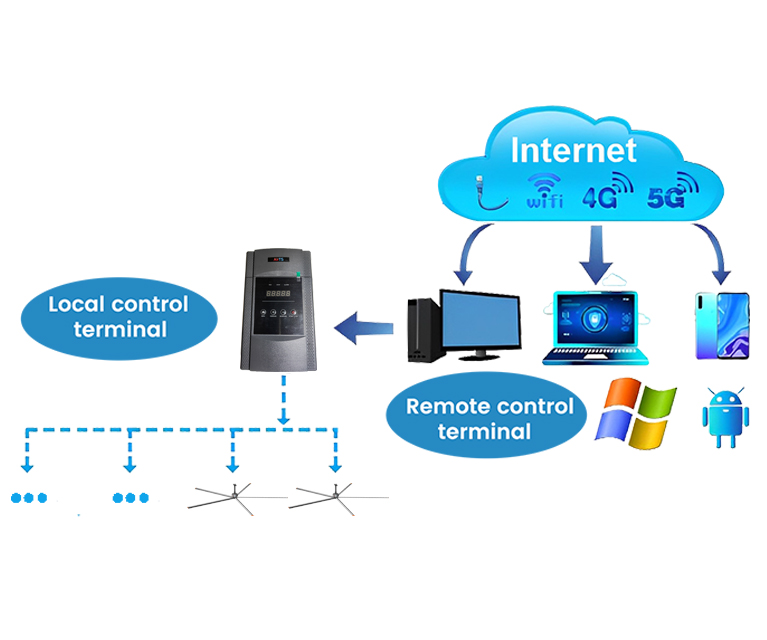

Optional IoT Control and Wireless Control System
IoT Control by Mobile APP for Android:
1. Remotely monitor the operating status of HVLS Fans
2. Data collection, analysis in time
3. Error alarm when fault happen
4. Support group control about 200 units
Optional Wireless Control System
1. Wireless control operation
2. The host computer can monitor all devices within a radius of 1km
3. Centralized control of multiple devices, partial control, single machine single control
4. Support for remote control by mobile APP
5. Accurate energy-saving and consumption reduction, automatic operation
6. Data recorded, multi-dimensional analysis
7. Support full AirTS products linkage control
Specification
Model | AirTS-F55 |
| Blades (PCS) | 5 |
| Diameter (mm/ft) | 5500/18 |
| Rotation Range (RPM) | 20~63 |
| Max airflow (m³/min) | 10500 |
| Voltage (V) | 110/220/380 |
| Frequency (Hz) | 50/60 |
| Motor power (kW) | 0.88 |
| Rated current (A) | 3.5 |
| Noise (dB) | 39 |
| Coverage area (m²) | 600 |
| Body weight (kg) | 90 |
Application

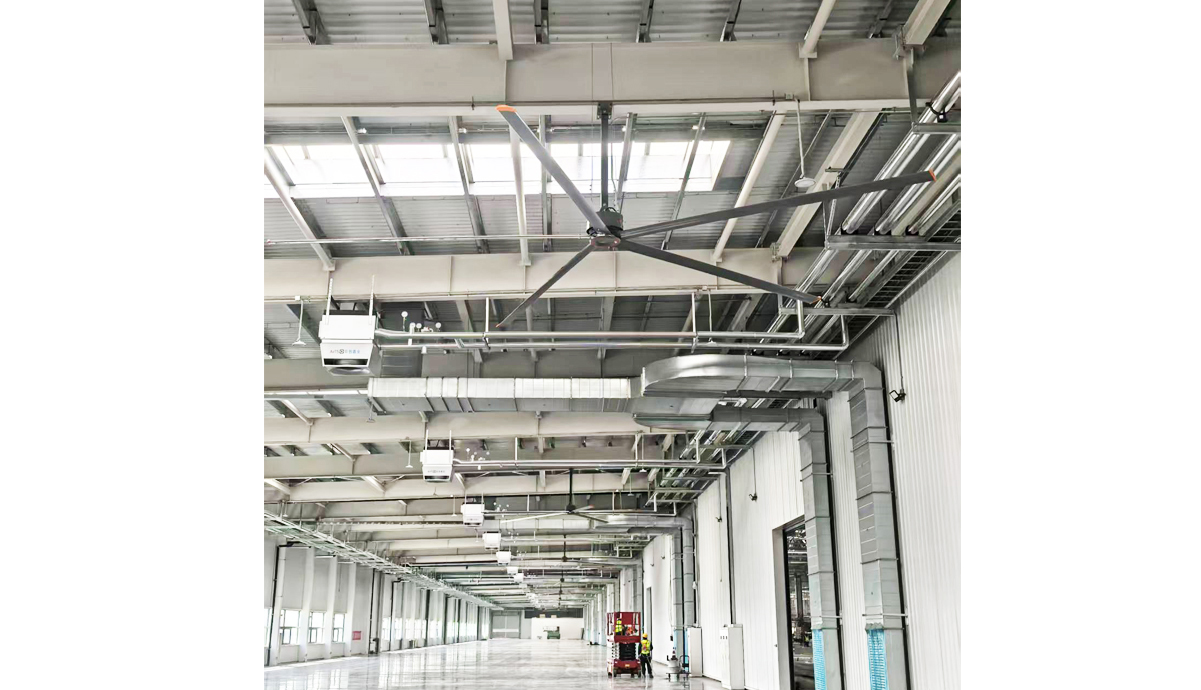

Warehouses and Distribution Centers: HVLS fans are used in warehouses and distribution centers to improve air circulation and reduce HVAC costs.

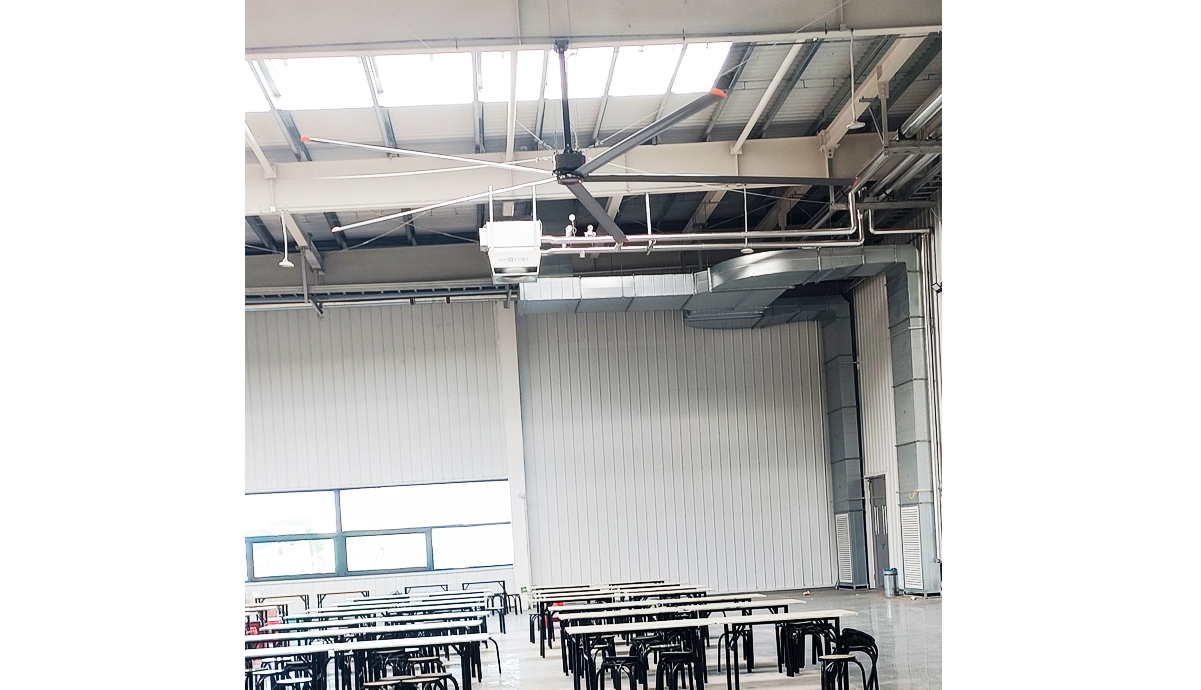

Manufacturing Facilities: HVLS fans are used in manufacturing facilities to improve air circulation and reduce HVAC costs.
Retail Spaces: HVLS fans are used in retail spaces to improve customer and employee comfort.
Sports Facilities: HVLS fans are used in sports facilities to improve the comfort of athletes and spectators.
Agricultural Buildings: HVLS fans are used in farm buildings to improve air circulation and reduce heat stress in animals.
